Type : Blister Packaging Machine
For more information on prices, machine products and other necessities.
Please contact info@unitek-indonesia.com or Whatsapp :
+62 811 900 1211 (Sales)

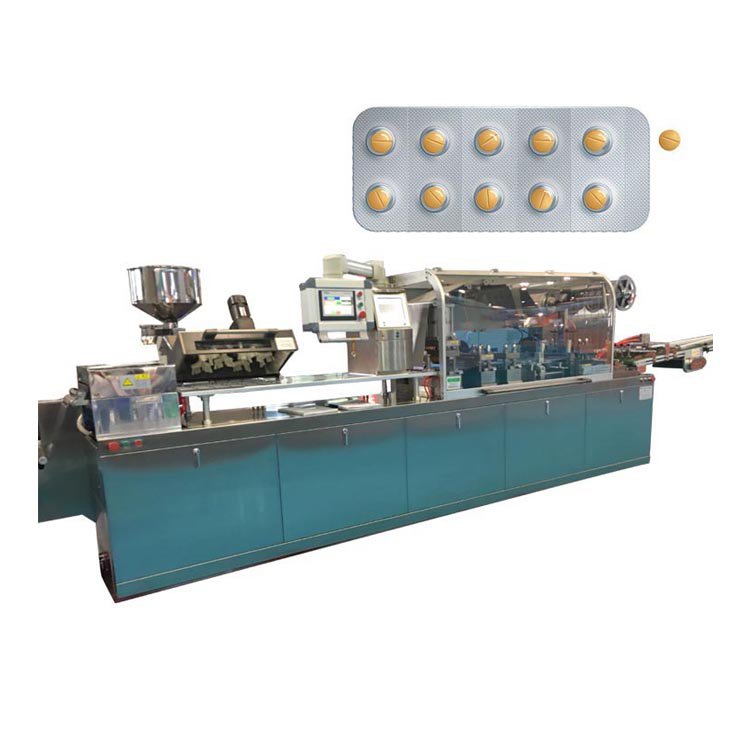

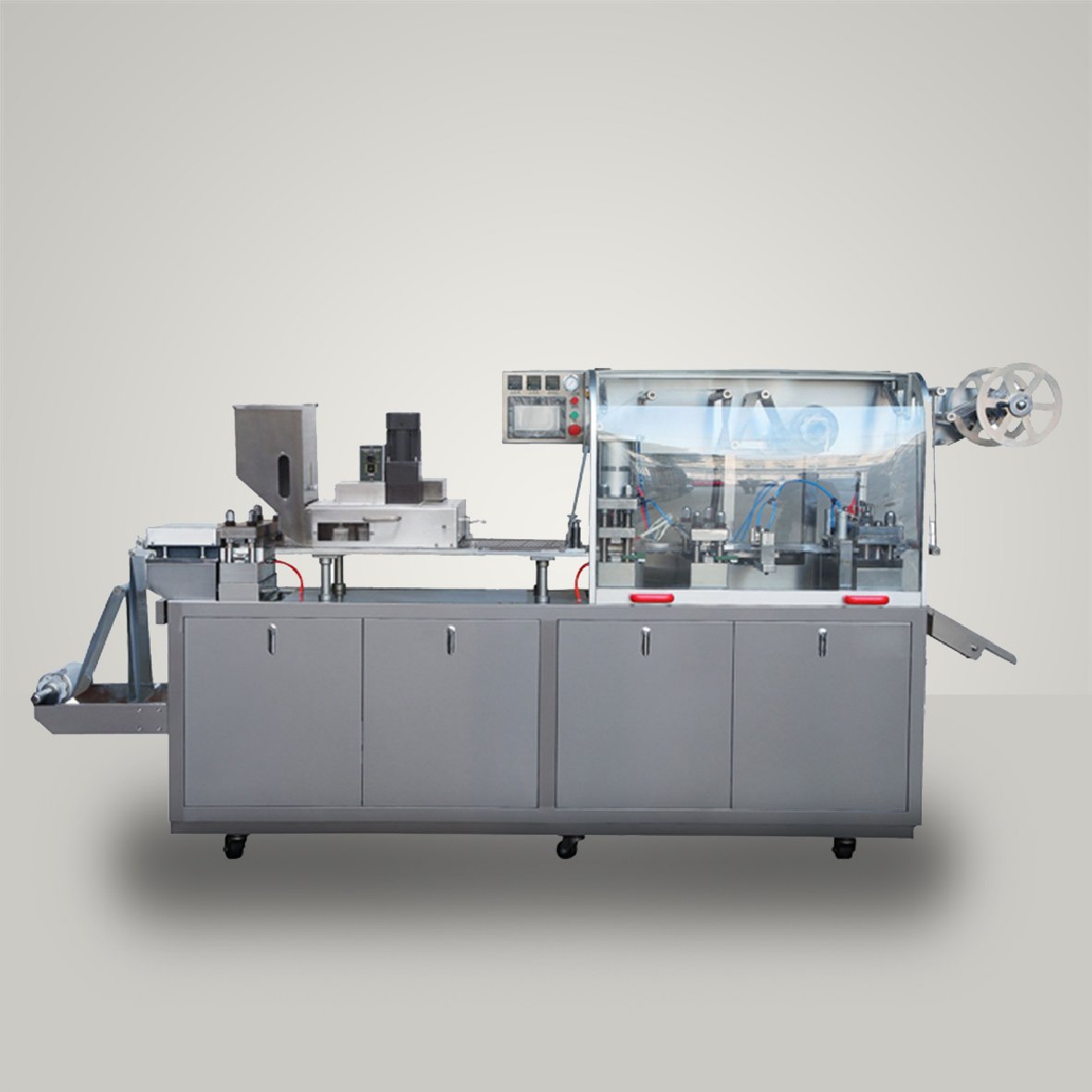

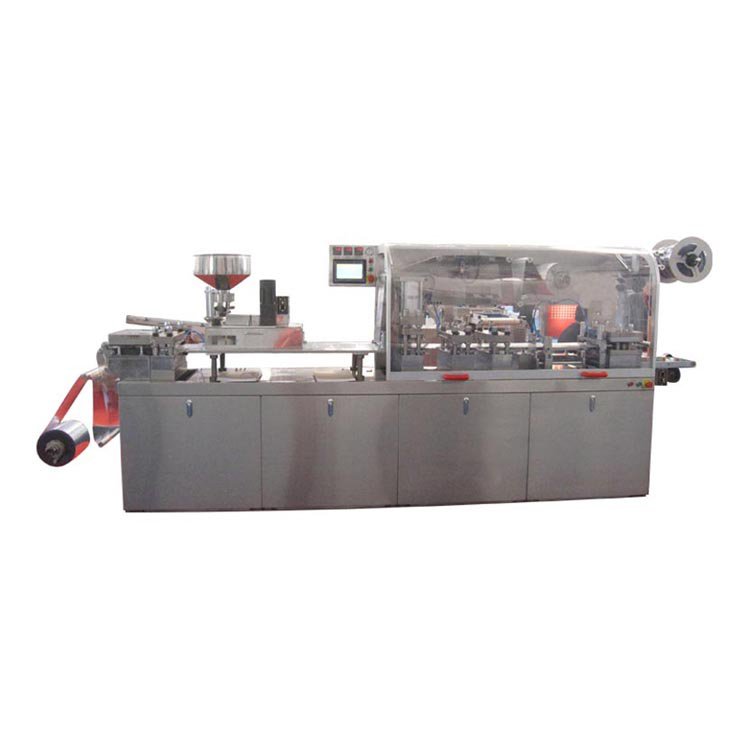

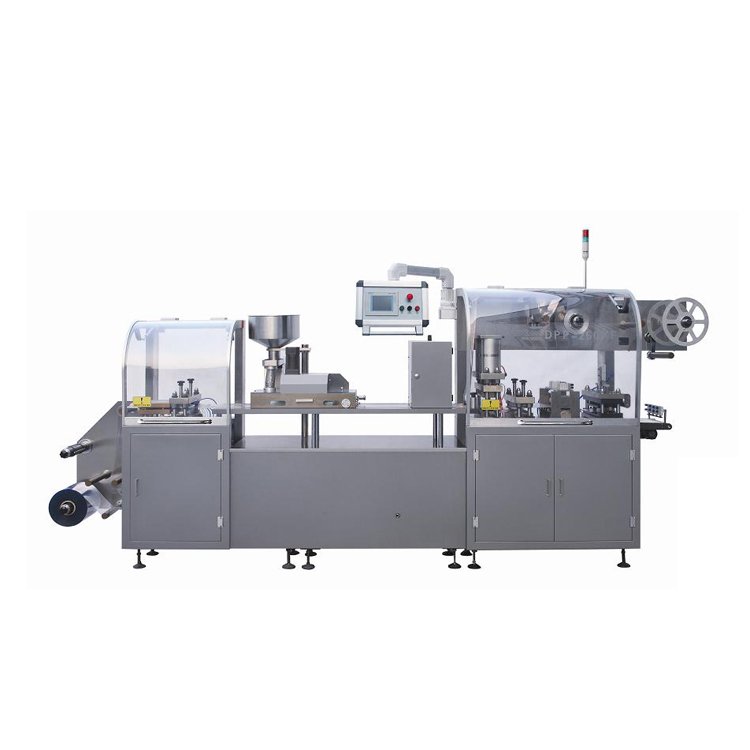

This machine is newly developed and innovated by our company, and it technology is advanced in China by now. This machine is widely used for the aluminum-plastic/ paper-plastic/ aluminum-aluminum sealing & packing of capsules, tablets, honey pills, candies, disposable syringes or irregular products in industries of pharmaceutical, food, health care and medical machinery, etc. With the micro-computer PLC control, the VVVF and the touch screen, its automation is high, and it’s ideal blister packing machine for manufacturers. This product passed the approval of Provincial technological achievements of China.
1. The spindle locating devices with gear racks are equipped in the devices of forming, thermal sealing, batch No. printing, impressing and cutting, etc, and when the handle is rotated, all these devices can move flexibly in the spindle. There is a ruler, with which it’s convenient to position fast and correctly.
2. There are double oscillating rods in the manipulator, the puling travel’s range is increased to 180mm, so the blister package with all kinds of size can be satisfied. Operations of blister sheet correcting & heating, the pressing & forming, the face/back surface pattern impressing, the cylinder’s thermal sealing, the automatic feeding, the automatic batch No. printing and automatic cutting can all be completed by this machine, and it’s easy and reliable to operate.
3. With the pressing & air forming device and the mechanical punch, the blister shapes are homogeneous and strong, and it is specially used for the packing of big honey pill or medical machinery, etc, whose size is bigger or whose shape is irregular. When the special automatic charging device is equipped, this machine can also be used for the packing of ampoule, syringe or vials, etc.
4. The helical-gear reducing box with parallel shaft is adopted for the main transmission part, the pin positioning is adopted for the dies of forming, thermal sealing and the impressing, the pressing plate is tight, the positioning is accurate, and it’s convenient to change dies.
5. As to user’s requirement, the machine can be made by several parts, which is convenient to move the machine into the workshop.

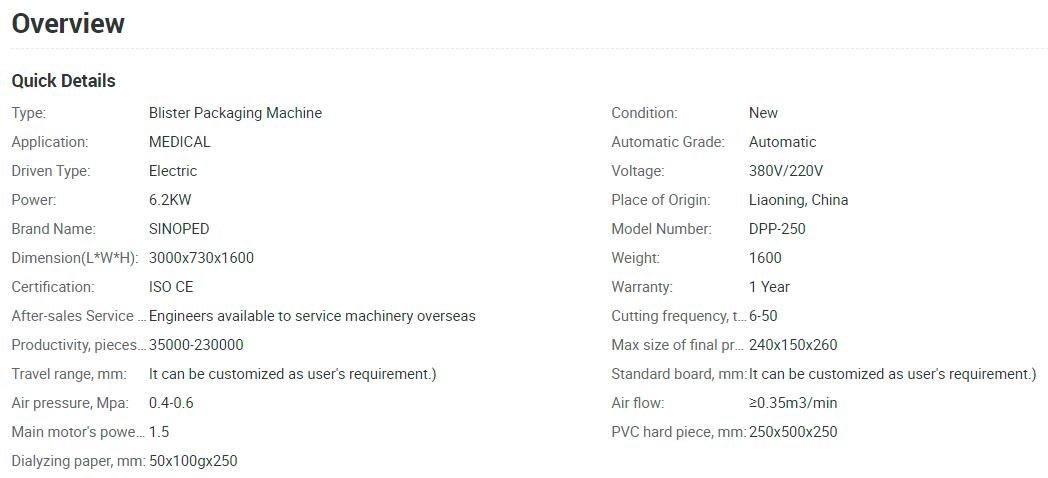

Model | DPP250 |
Cutting frequency, times/m | 6-50 |
Productivity, pieces/h | 35000-230000 |
Max size of final product, mm | 240×150×26(The standard depth is 14mm.) |
Travel range, mm | 40-160(It can be customized as user’s requirement.） |
Standard board, mm | 80×57(It can be customized as user’s requirement.) |
Air pressure, Mpa | 0.4-0.6 |
Air flow | ≥0.35m3/min |
Total power | 380V/220V 50Hz 6.2KW |
Main motor’s power, Kw | 1.5 |
PVC hard piece, mm | 0.25-0.5×250 |
PTP aluminum foil, mm | 0.02-0.035×250 |
Dialyzing paper, mm | 50-100g×250 |
Die cooling | Running water or circulating water |
Dimension, mm | 3000×730×1600(L×W×H) |
Weight, kg | 1600 |
